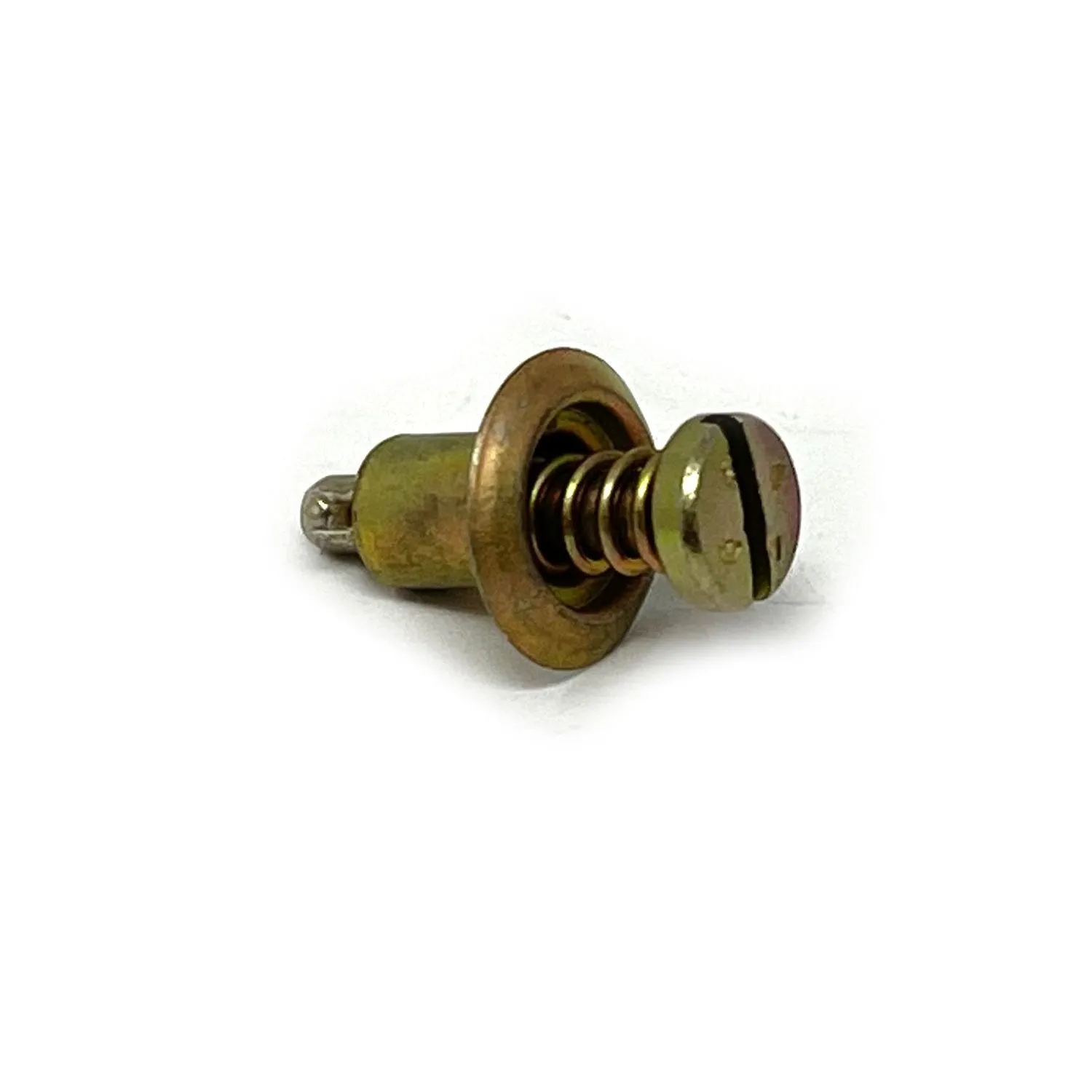

Alcoa Camloc - Steel Stud Assembly, Turnlock Fastener | 2600-4
- Diameter: 0.298 Inches Minimum And 0.308 Inches Maximum
- Securing Device Type: Ring
- Turnlock Stud Head Style: Flat Fillister
- Stud Assembly Style: Stud Assembly
- Distance From Engaging Member To Largest Bearing Surface Of Head: 0.609 Inches Nominal
- Eyelet Outside Diameter: 0.244 Inches Minimum And 0.250 Inches Maximum
- Eyelet Length: 0.322 Inches Nominal
- Material Accommodated Thickness: 0.120 Inches Minimum And 0.149 Inches Maximum
- Drive Type: Slotted
- Stud Head Height: 0.088 Inches Minimum And 0.098 Inches Maximum
- Material: Steel Ejector Springsteel Comp 1009 Eyeletsteel Pinsteel Comp 4037 Stud
- Material Document And Classification: Astm A547 Assn Std Single Material Response Ejector Springastm A109 Assn Std Single Material Response Eyeletastm A228 Assn Std Single Material Response Pinastm A547 Assn Std Single Material Response Stud
- Surface Treatment: Cadmium Overall And Chromate Overall
- Surface Treatment Document And Classification: QQ-P-416,Ty 2,Cl 2 Fed Spec Single Treatment Response Overall
